VS Code + Codex + Figma MCP 教程

让 Codex 直接读取 Figma Dev Mode 的设计，并生成 UI 代码。

1. 准备工作

• Node.js 已安装，并全局安装/更新 Codex CLI：npm i -g codex@latest
• VS Code + Codex 扩展（已安装并登录）
• Figma 桌面版，打开 Dev Mode
• 已启动 Figma MCP 服务，默认监听 http://127.0.0.1:3845/mcp
• 配置文件路径：C:\Users\<你的用户名>\.codex\config.toml（或 ~/.codex/config.toml）

2. 安装/启用 Codex

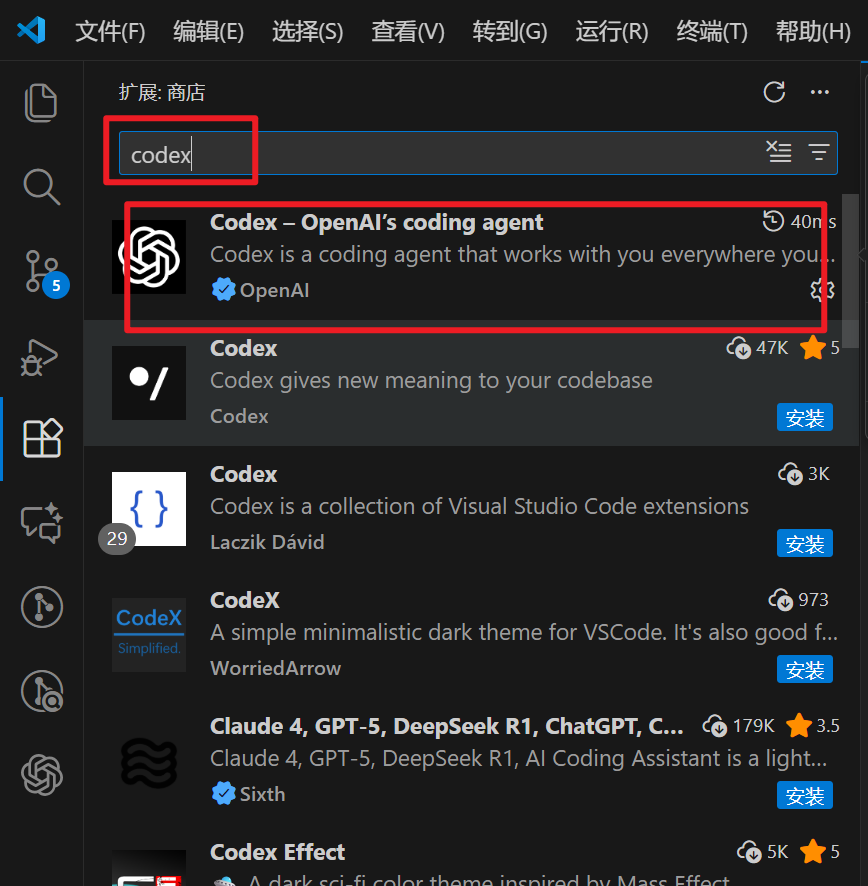

1. 在 VS Code 中安装并启用 Codex 扩展，完成登录。

2. 在 Codex 设置里选择模型 gpt-5.1-codex-max，推理档位选 High。

3. 在 config.toml 配置 Figma MCP

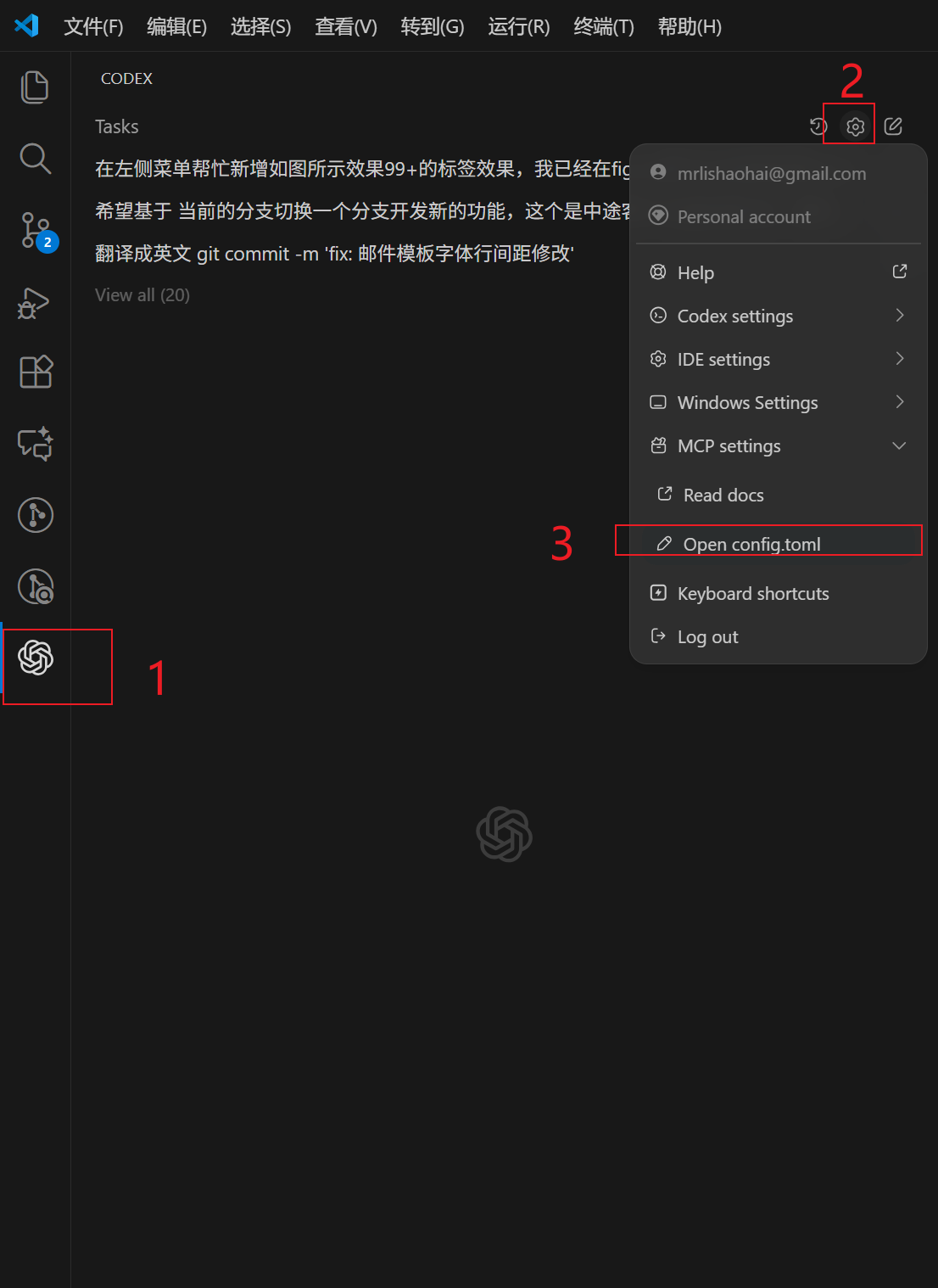

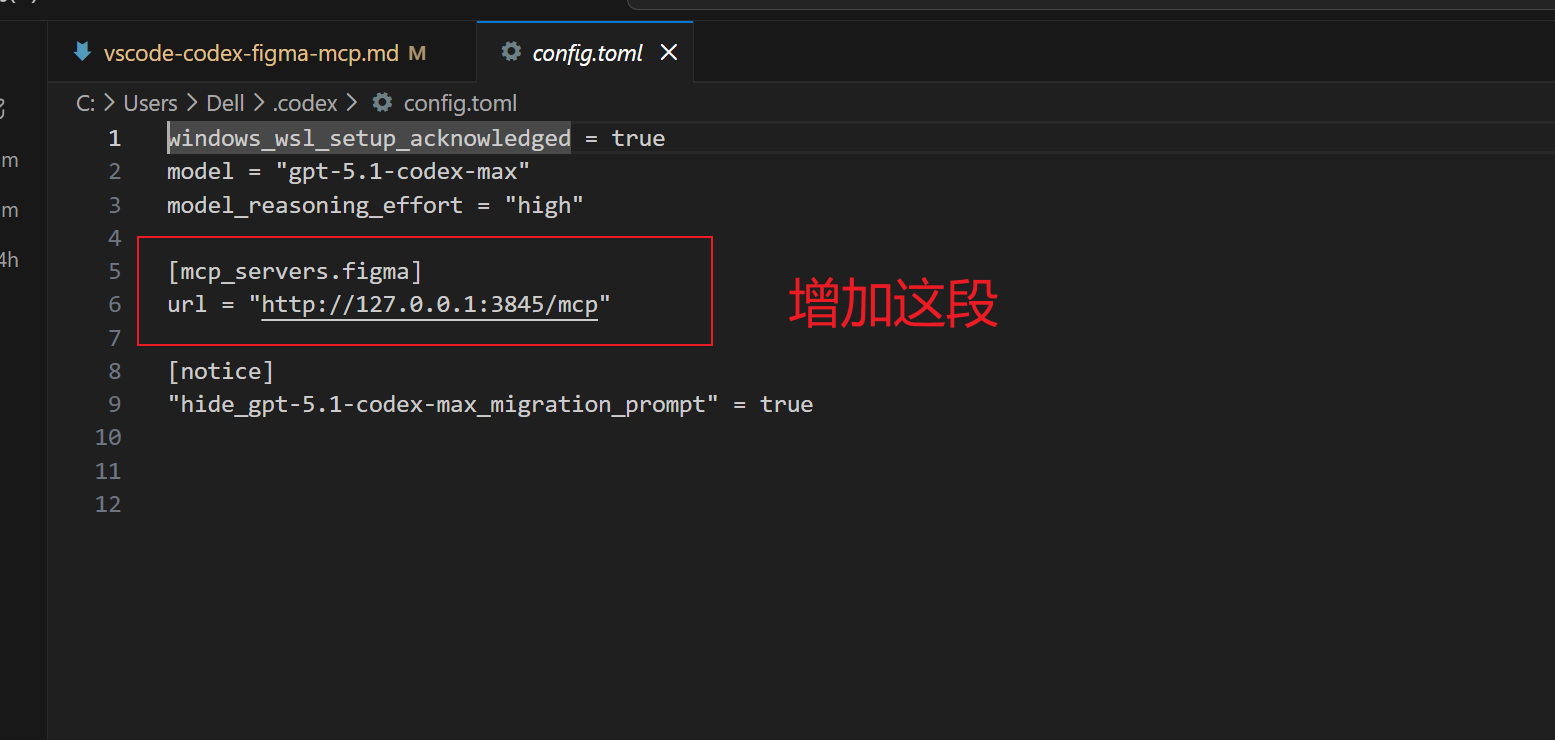

编辑 C:\Users\Dell\.codex\config.toml（用户名按需替换），确认包含以下内容：

windows_wsl_setup_acknowledged = true
model = "gpt-5.1-codex-max"
model_reasoning_effort = "high"

[mcp_servers.figma]
url = "http://127.0.0.1:3845/mcp"

[notice]
"hide_gpt-5.1-codex-max_migration_prompt" = true

DANGER

不要保留占位写法 url = xxx，务必填写实际运行中的 Figma MCP 地址（默认 http://127.0.0.1:3845/mcp）。

修改后重载 VS Code，让 Codex 重新加载配置。

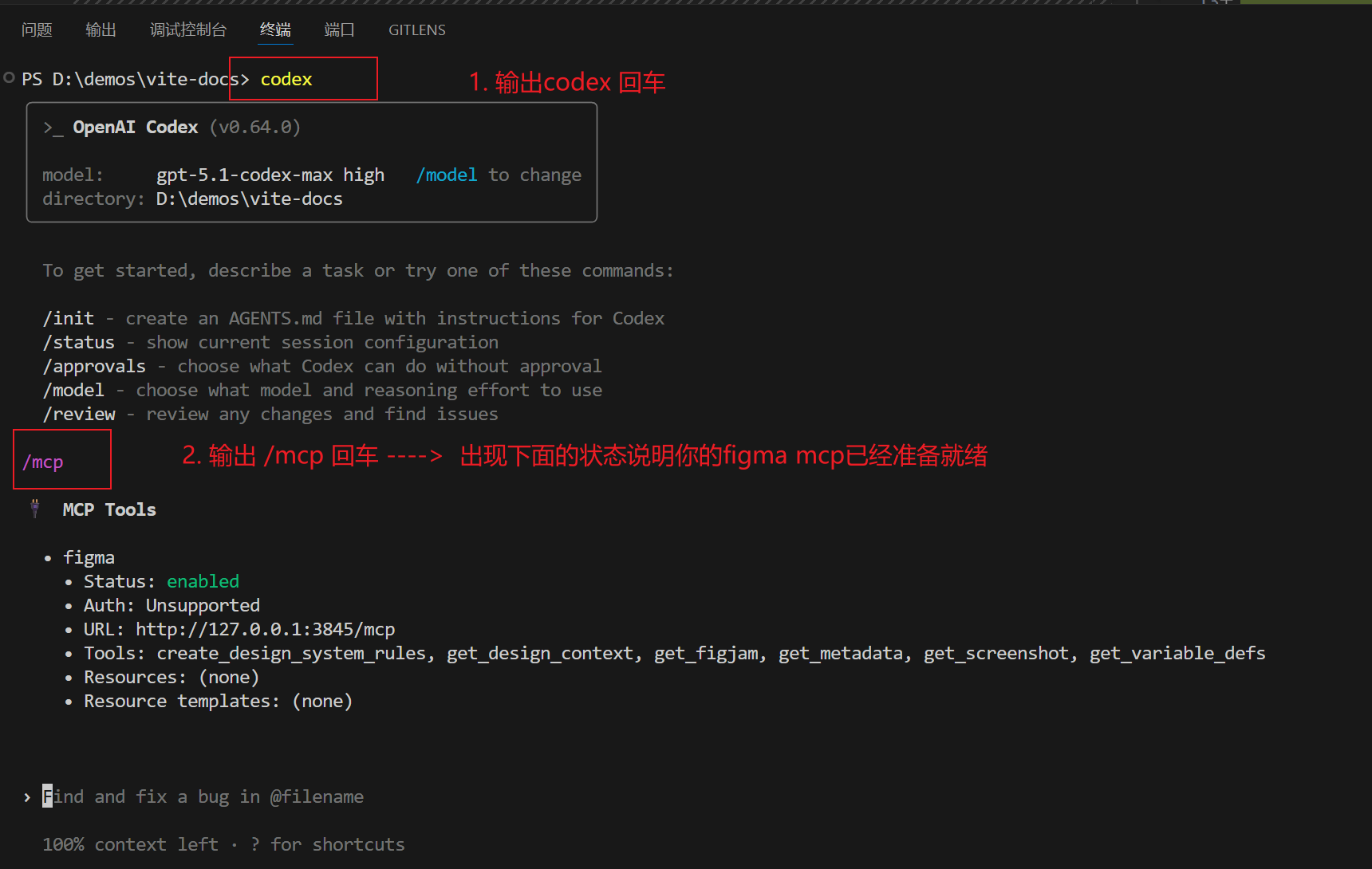

判断 Figma MCP 是否准备就绪：终端输入 codex，再输入 /mcp 查看返回结果。

4. 在 AGENTS.md 补充团队约定

将下面的段落追加到 AGENTS.md，让团队在写 UI 时始终利用 Figma MCP：

## Figma MCP Usage

Use the `figma` MCP server whenever implementing or updating UI that comes from Figma.

### 1. How to provide Figma context

You can give design context to the agent in two ways:

- **Selection-based (desktop, preferred)**

  - In the Figma desktop app, switch to Dev Mode and select a frame/layer.
  - Then ask the agent to work from "my current Figma selection."

- **Link-based**
  - Copy a Figma link to a specific frame/layer and paste it in the conversation.
  - The client should extract the `node-id` from the URL and use it with MCP.

Work on one component or logical section at a time rather than whole pages.

### 2. Recommended call sequence

When implementing a Figma design, follow this order:

1. **`get_code`**

   - First call. Get structured code for the exact node(s) being implemented.
   - If output is too large or truncated, use `get_metadata` to inspect structure, then call `get_code` only for the needed nodes.

2. **`get_variable_defs`** (desktop)

   - Get variables/styles (colors, spacing, typography, etc.) used in the selection.
   - Prefer these values over arbitrary hard-coded ones.

3. **`get_screenshot`**

   - Get a screenshot of the selection to verify layout and visual fidelity.

4. **`get_code_connect_map`** (if available)

   - Use mapping from Figma nodes to existing code components to reuse existing implementations.

5. If needed, use **`create_design_system_rules`** to generate reusable rules and save them where the agent can read them (e.g. a rules/instructions directory).

### 3. Tool quick reference

- `get_code`: main entry; structured code for the selection.
- `get_variable_defs`: variables and styles used in the selection.
- `get_code_connect_map`: mapping from Figma nodes to code components.
- `get_screenshot`: screenshot of the selection for visual comparison.
- `get_metadata`: structural outline (IDs, names, types, positions, sizes).
- `create_design_system_rules`: generates written rules for how to translate Figma designs.

### 4. Assets & large designs

- If MCP returns local image/SVG URLs (e.g. `http://localhost:3845/assets/...`), use those assets directly instead of adding new icon/image packages or placeholders.
- For very large screens:
  - Avoid calling `get_code` on the whole page.
  - Break the design into smaller parts and call MCP on each part separately.
  - Use `get_metadata` first if you need to understand the structure before fetching code for specific nodes.

5. 开始使用

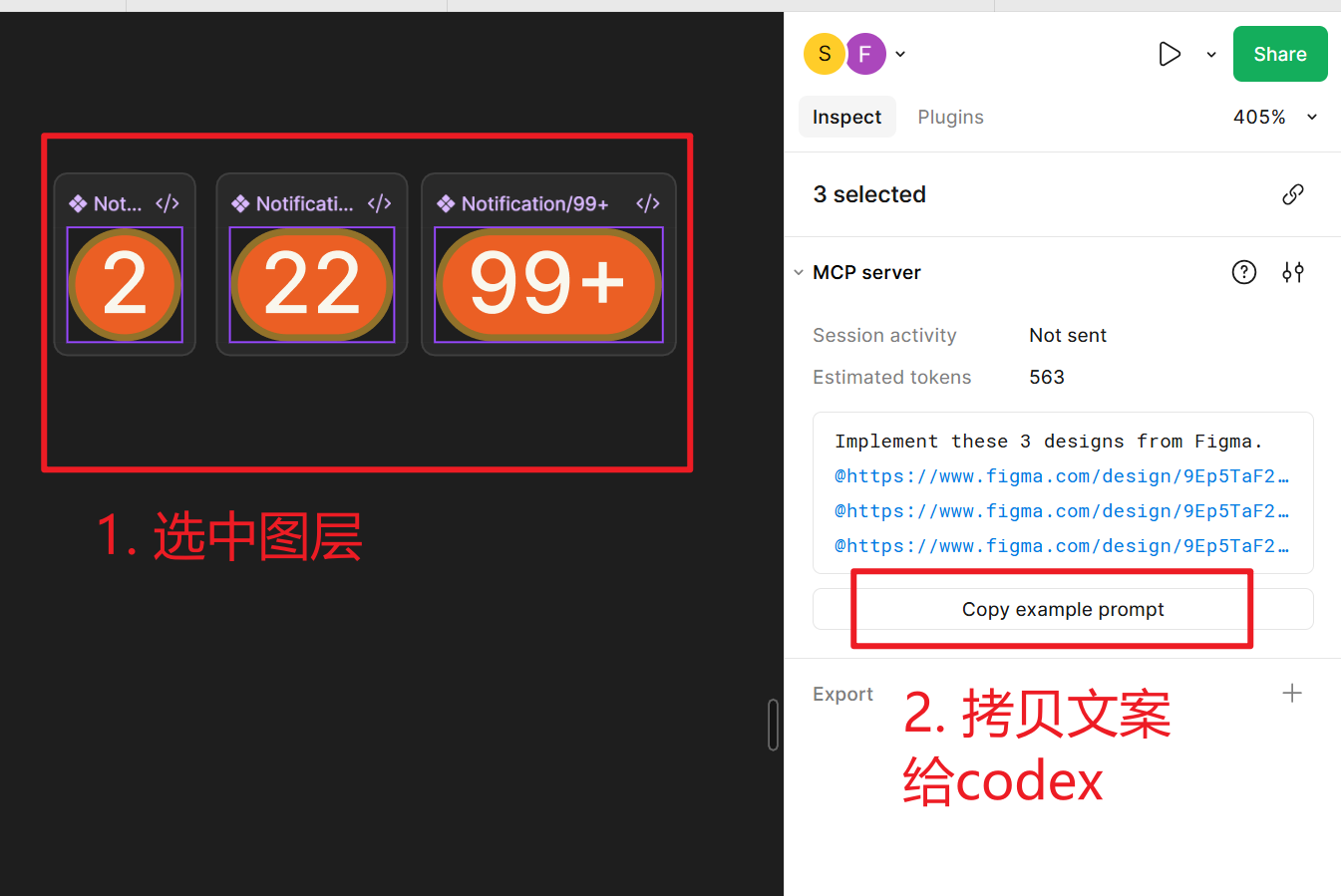

1. 打开 Figma，切到 Dev Mode，选中要实现的 frame/component。
2. 确认本地 Figma MCP 进程已启动（默认 3845 端口可访问）。
3. 在 VS Code 的 Codex 面板输入指令，例如：“根据我当前 Figma 选中生成 React 代码，保持像素级还原”。
4. 如需更多上下文，可让 Codex 先调用 get_screenshot 或 get_variable_defs 再继续实现。

6. 常见问题

• 看不到 Figma MCP？检查 config 的 url 是否正确、端口是否占用。
• 生成代码缺少样式？让 Codex 调用 get_variable_defs 获取变量后再生成。
• 大屏页面超时？先用 get_metadata 看结构，再分块调用 get_code。
